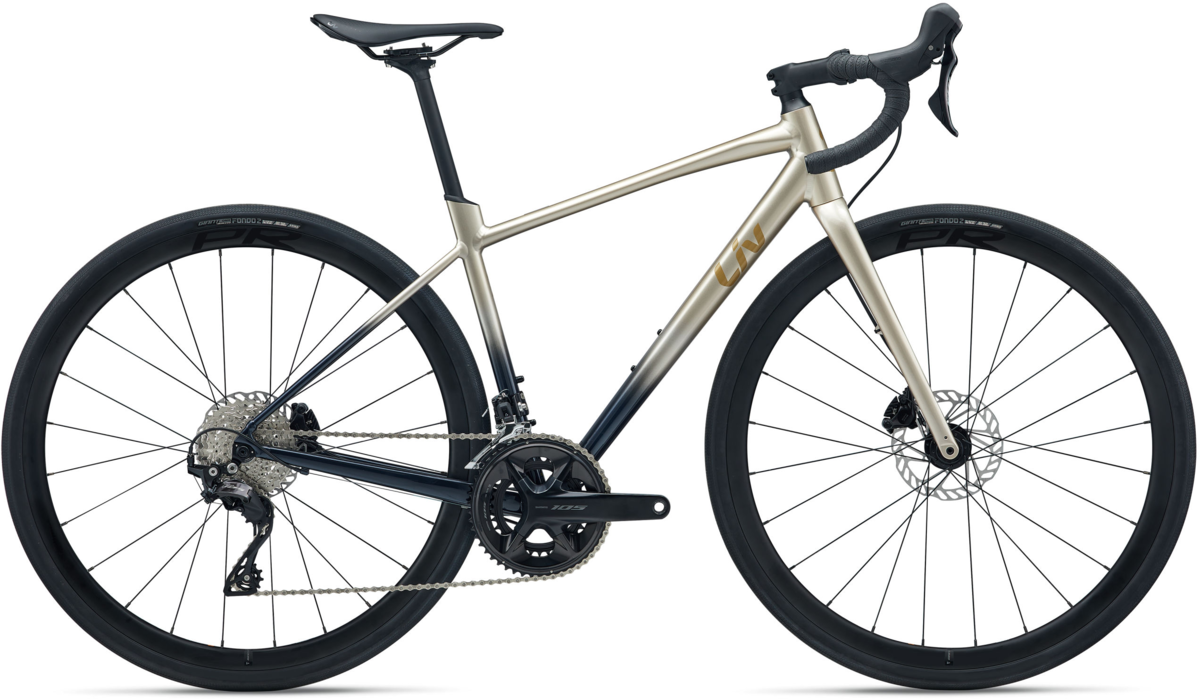

Liv Avail AR 1

Liv Avail AR 1
$2,599.00
Color: Sandshell/Cold Night
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Purchase online and pick up in-store. Orders can take 24 to 48 hrs to be processed. We'll notify you once your order is ready. 10% processing fee applies to any cancelled or modified orders.

Details

Whether it’s navigating asphalt or venturing through an unpaved shortcut, the Avail AR is smooth on flats, spry on climbs ,and confident on descents.

Comfort
- The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control
- The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity
- Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

bike diagram with measurements referenced in table that follows

Sizes:
SizeXX-SmallX-SmallSmallMediumLarge
A Seat Tube Length (mm) 395 430 465 500 535
B Seat Tube Angle 75.0° 75.0° 74.5° 74.0° 74.0°
C Top Tube Length (mm) 500 515 525 540 555
D Head Tube Length (mm) 120 135 150 170 190
E Head Tube Angle 70.0° 70.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 45 45 45 45 45
G Trail (mm) 76.2 73 63.5 63.5 63.5
H Wheelbase (mm) 986 998 990 1000 1016
I Chain Stay Length (mm) 420 420 420 420 420
J Bottom Bracket Drop (mm) 70 70 70 70 70
K Stack (mm) 514 530 550 569 588
L Reach (mm) 362 372 372 377 386
M Stand Over Height (mm) 662 687 716 744 772
N Handlebar Width (mm) 380 380 400 400 420
O Stem Length (mm) 70 70 80 90 90
P Crank Length (mm) 165 165 170 170 172.5
Sizes:
SizeXX-SmallX-SmallSmallMediumLarge
Rider Height (cm) 145–156 cm 153–162 cm 158–169 cm 165–174 cm 171–182 cm

Specs

Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Rims Giant P-R2 Disc, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tires Giant Gavia Fondo 2, 700x32c, tubeless
Bottom Bracket Shimano BB-RS501
Crankset Shimano 105, 34/50, XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
Shifters Shimano 105
Front Derailleur Shimano 105
Rear Derailleur Shimano 105
Cassette/Freewheel Shimano 105, 12-speed, 11x36
Chain KMC X12
Brakes Shimano 105 hydraulic, Giant MPH rotors, [F]160mm, [R]160mm
Brake Levers Shimano 105
Handlebars Liv D-Fuse SL, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
Tape/Grips Liv All Condition
Stem Giant Contact, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
Seatpost Giant D-Fuse, composite, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
Pedals Sold Seperately
Saddle Liv Approach

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Sandshell/Cold Night / X-Small / 700c 04711291217775 1017034123 210000013745
Sandshell/Cold Night / Small / 700c 04711291217782 1017034124 210000013746
Sandshell/Cold Night / Medium / 700c 04711291217799 1017034125 210000013747
