Liv Avail Advanced Pro 1

Liv Avail Advanced Pro 1
  • Color: Messier
Color: Messier
Size: Small
Please select options Unavailable
Purchase online and pick up in-store. Orders can take 24 to 48 hrs to be processed. We'll notify you once your order is ready. 10% processing fee applies to any cancelled or modified orders.

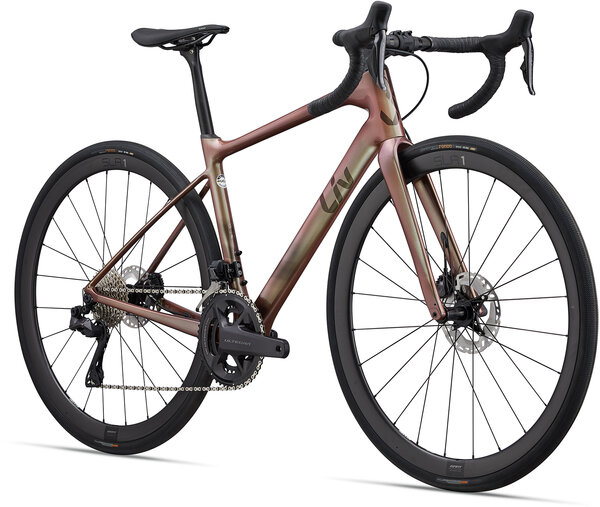

Ideal for both epic solo adventures and group road rides, the Avail Advanced Pro is lightweight and comfortable.

Built for Endurance
Advanced-Grade Composite and OverDrive 2 provide unprecedented pedaling and cornering stiffness on an endurance geometry for all-day riding.

Combines the weight-savings and stability of a compact road frame design with powerful disc brakes for expert handling and control, no matter the weather and road conditions.

Adaptable Comfort
The Avail tackles the roads less traveled with larger-size tire compatibility and a D-Fuse seatpost to soak up bumps.

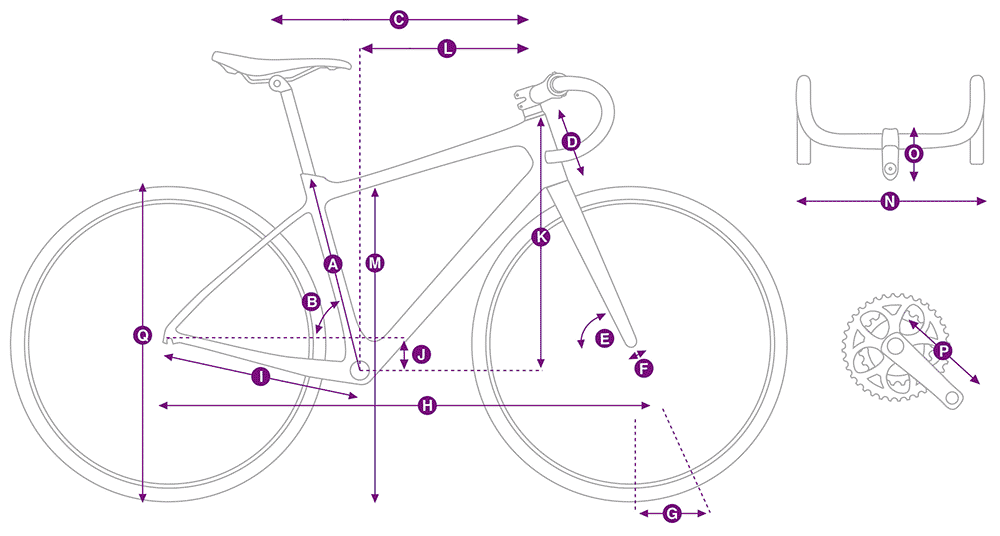

Geometry Chart:
A. SEAT TUBE LENGTH (mm) 400 435 470
B. SEAT TUBE ANGLE 74.5° 74.5° 74.0°
C. TOP TUBE LENGTH (mm) 515 525 540
D. HEAD TUBE LENGTH (mm) 125 145 165
E. HEAD TUBE ANGLE 70.5° 71.5° 72.0°
F. FORK RAKE (mm) 50 50 50
G. TRAIL (mm) 71.3 64.7 61.5
H. WHEELBASE (mm) 995 998 1004
I. CHAIN STAY LENGTH (mm) 420 420 420
J. BOTTOM BRACKET DROP (mm) 75 73 73
K. STACK (mm) 527 547 568
L. REACH (mm) 368 373 377
M. STAND OVER HEIGHT (mm) 684 716 745
N. HANDLEBAR WIDTH (mm) 380 400 400
O. STEM LENGTH (mm) 70 80 90
P. CRANK LENGTH (mm) 165 170 170
Q. WHEEL SIZE 700C 700C 700C
Frame SizeRider Height
X-Small 5'0" - 5'4"
Small 5'2" - 5'7"
Medium 5'5" - 5'9"


Frame Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork Advanced-Grade Composite, full-composite OverDrive 2 steerer, 12x100mm, disc
Rims Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tires Giant Gavia Fondo 0, tubeless, 700x32c (33.5mm), folding
Bottom Bracket Shimano, press fit
Crankset Shimano Ultegra, 34/50 XXS:165mm, XS:165mm, S:170mm, M:170mm, L:172.5mm
Shifters Shimano Ultegra Di2 ST-R8170
Front Derailleur Shimano Ultegra Di2 FD-R8150
Rear Derailleur Shimano Ultegra Di2 FD-R8150
Cassette/Freewheel Shimano Ultegra, 12-speed, 11x34
Chain KMC X12
Brakes Shimano Ultegra Di2 hydraulic, Shimano RT-MT800 rotors [F]160mm, [R]140mm
Brake Levers Shimano Ultegra Di2
Handlebars Liv Contact SLR D-Fuse, 31.8mm XXS:38cm, XS:38cm, S:40cm, M:40cm, L:42cm
Tape/Grips Liv All Condition
Stem Giant Contact SL XXS:70mm, XS:70mm, S:80mm, M:90mm, L:90mm
Seatpost Giant D-Fuse SLR, composite, -5/+15mm offset XXS:350mm, XS:350mm, S:350mm, M:350mm, L:350mm
Saddle Liv Alacra SL
Pedals Sold separately
Accessories & Extras tubeless prepared, 35mm max tire size

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Messier / Small 04712878829381 2300052104 210000011408
