Giant Talon E+ 2 29

Giant Talon E+ 2 29
$3,299.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Purchase online and pick up in-store. Orders can take 24 to 48 hrs to be processed. We'll notify you once your order is ready. 10% processing fee applies to any cancelled or modified orders.

Details

The trail is calling, and here's your answer. This balanced, smooth-riding E-bike gives you a smooth boost of power and total control, so you can have more fun and expand your off-road riding capabilities.

Smooth power delivery
The SyncDrive Core motor delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun.

Balanced, confident handling
Lightweight aluminum frame with trail-friendly geometry, 100mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control on off-road terrain.

Long-lasting battery
Side Release EnergyPak with 400Wh of capacity is easy to charge with our 4A smart charger.

Geometry

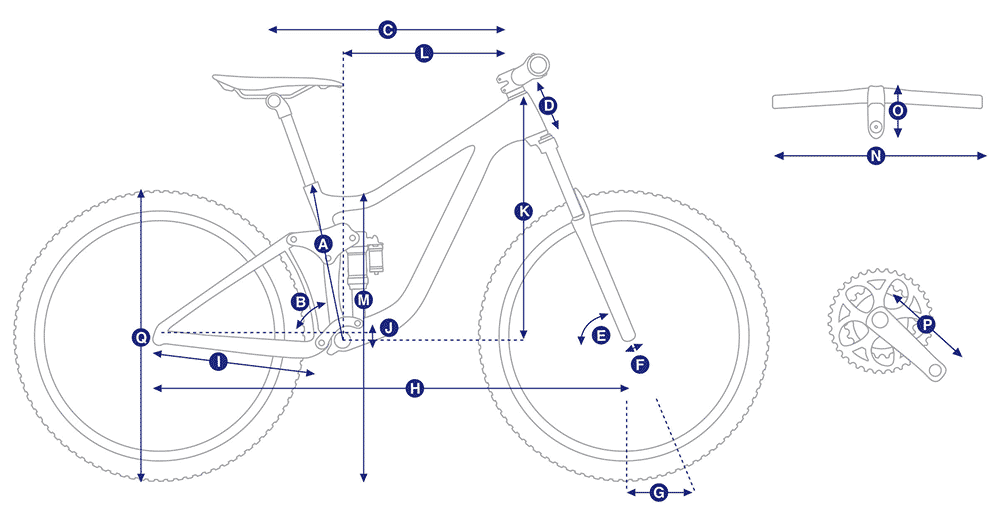

Geometry Chart:
SIZESmallMediumLargeX-LargeXX-Large
A. SEAT TUBE LENGTH (mm) 405 455 505 535 560
B. SEAT TUBE ANGLE 73.0° 73.0° 73.0° 73.0° 73.0°
C. TOP TUBE LENGTH (mm) 575 600 625 650 675
D. HEAD TUBE LENGTH (mm) 105 115 125 140 155
E. HEAD TUBE ANGLE 68.0° 68.0° 68.0° 68.0° 68.0°
F. FORK RAKE (mm) 46 46 46 46 46
G. TRAIL (mm) 100.7 100.7 100.7 100.7 101
H. WHEELBASE (mm) 1141 1167 1193 1219 1245
I. CHAIN STAY LENGTH (mm) 475 475 475 475 475
J. BOTTOM BRACKET DROP (mm) 45 45 45 45 45
K. STACK (mm) 625 634 643 657 671
L. REACH (mm) 384 406 428 449 470
M. STAND OVER HEIGHT (mm) 723 753 788 808 828
N. HANDLEBAR WIDTH (mm) 690 750 750 780 780
O. STEM LENGTH (mm) 50 60 60 70 70
P. CRANK LENGTH (mm) 160 165 170 170 170
Q. WHEEL SIZE 29" 29" 29" 29" 29"
Sizes:
Frame SizeRider Height
Small 5'1" - 5'5"
Medium 5'4" - 5'8"
Large 5'7" - 5'10"
X-Large 6'0" - 6'4"
XX-Large 6'3" - 6'7"

Specs

Frame ALUXX Aluminum, Overdrive 1.5 - 1.125" head tube, integrated KSA18 kickstand mount
Fork SR Suntour XCM 32 ATB Coil NLO, 29" 100mm travel, Tapered 1.5 - 1.125" steerer
Rims Giant GX03V, 29er, Aluminum
Hubs Giant eTracker Sport, [F] 9mm QR [R] 135mm QR
Spokes Stainless steel
Tires Maxxis Rekon 29x2.4" Wire Bead 60TPI
Crankset FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T
Shifters Shimano Altus, 1x9
Rear Derailleur Shimano Alivio, 9-speed
Cassette/Freewheel Shimano CS-HG200, 11-36T, 9-speed
Chain KMC e.9 Sport, e-bike optimized
Brakes Tektro HD-M285, hydraulic disc, 180mm [F],160mm [R]
Brake Levers Tektro HD-M285
Handlebars Giant Connect TR Riser, 31.8mmx690~750mm
Tape/Grips Giant Sole-O Grip
Stem Giant Contact
Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminum
Saddle Giant Sport
Pedals Aluminum Platform
Motor SyncDrive Core, 50Nm, powered by Yamaha
Battery EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Controller/Display RideControl Dash, full color LCD screen
Charger EnergyPak 4A smart charger

* Subject to change without notice.

Part Numbers

Option UPC MPN
Amber Glow / XX-Large / 29-inch 04712878847385 2303409159
Cobalt / Small / 29-inch 04711291156043 2303421254
Cobalt / X-Large / 29-inch 04711291156074 2303421258
Cobalt / XX-Large / 29-inch 04711291156081 2303421259
